Install Oracle ASM on Linux 8 Using UDEV (No ASMLib)

OS Konfigurasi

PreInstall

bash

# Download preinstall jika ada internet
curl -o oracle-database-preinstall-19c-1.0-2.el8.x86_64.rpm https://yum.oracle.com/repo/OracleLinux/OL8/appstream/x86_64/getPackage/oracle-database-preinstall-19c-1.0-2.el8.x86_64.rpm

# Install
yum -y install oracle-database-preinstall-19c-1.0-2.el8.x86_64.rpm

Konfigurasi /etc/hosts, SELINUX dan Firewall

bash

vi /etc/hosts
vi /etc/selinux/config

# Set Permissive
SELINUX=permissive

setenforce 0

# Disable Firewall

systemctl stop firewalld
systemctl disable firewalld

Ilustrasi Struktur

bash

+DATA
 ├── SYSTEM.dbf
 ├── USERS.dbf
 ├── SYSAUX.dbf
 └── redo01.log, redo02.log

+FRA
 ├── ARCHIVELOG/
 ├── BACKUPSET/
 ├── AUTOBACKUP/
 └── FLASHBACK/

Persiapan Disk ASM

bash

lsblk

bash

NAME                   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sda                      8:0    0  100G  0 disk
├─sda1                   8:1    0    1G  0 part /boot
└─sda2                   8:2    0   99G  0 part
  ├─ol_testserver-root 252:0    0 63.9G  0 lvm  /
  ├─ol_testserver-swap 252:1    0    4G  0 lvm  [SWAP]
  └─ol_testserver-home 252:2    0 31.2G  0 lvm  /home
sdb                      8:16   0   20G  0 disk
sdc                      8:32   0   20G  0 disk
sdd                      8:48   0   20G  0 disk
sde                      8:64   0   20G  0 disk
sr0                     11:0    1 1024M  0 rom

Kebutuhan

bash

sda      100G (Untuk OS)
sdb       20G (Untuk +DATA)
sdc       20G (Untuk +DATA)
sdd       20G (Untuk +DATA)

sde       20G (Untuk +FRA)

# 60G Untuk DATA 20G untuk FRA

Cek WWID/ID_SERIAL Disk

Jalankan untuk sdb,sdc,sdd,sde:

bash

udevadm info --query=all --name=/dev/sdb | grep ID_SERIAL
udevadm info --query=all --name=/dev/sdc | grep ID_SERIAL
udevadm info --query=all --name=/dev/sdd | grep ID_SERIAL
udevadm info --query=all --name=/dev/sde | grep ID_SERIAL

Contoh hasil:

bash

E: ID_SERIAL=VBOX_HARDDISK_VB60b2ac00_xxxx

Buat UDEV Rules

Contoh: kita ingin set /dev/sdb dan /dev/sdc agar dimiliki oleh user oracle dan group dba

bash

cat <<EOF > /etc/udev/rules.d/99-oracle-asm.rules
ENV{ID_SERIAL}=="VBOX_HARDDISK_VB60b2ac00-6daa3d26", SYMLINK+="oracleasm/asm-data1", OWNER="oracle", GROUP="dba", MODE="0660"
ENV{ID_SERIAL}=="VBOX_HARDDISK_VBe6fd7d34-6e2d417f", SYMLINK+="oracleasm/asm-data2", OWNER="oracle", GROUP="dba", MODE="0660"
ENV{ID_SERIAL}=="VBOX_HARDDISK_VB835d1ee2-b33935b1", SYMLINK+="oracleasm/asm-data3", OWNER="oracle", GROUP="dba", MODE="0660"
ENV{ID_SERIAL}=="VBOX_HARDDISK_VBb8bacc53-3ac18aea", SYMLINK+="oracleasm/asm-fra1", OWNER="oracle", GROUP="dba", MODE="0660"
EOF

Reload UDEV dan Verifikasi

bash

udevadm control --reload-rules
udevadm trigger

Cek kepemilikan:

bash

ls -l /dev/oracleasm/

bash

lrwxrwxrwx. 1 root root 6 Jul 10 11:33 asm-data1 -> ../sdb
lrwxrwxrwx. 1 root root 6 Jul 10 11:33 asm-data2 -> ../sdc
lrwxrwxrwx. 1 root root 6 Jul 10 11:33 asm-data3 -> ../sdd
lrwxrwxrwx. 1 root root 6 Jul 10 11:33 asm-fra1 -> ../sde

Install Oracle Grid Infrastructure (Stand-alone)

Menggunakan user oracle

Buat env grid

bash

vi grid.env

bash

# Oracle Settings
export TMP=/tmp
export TMPDIR=$TMP
export ORACLE_SID=+ASM

export ORACLE_HOME=/oracle/product/grid_home
export ORACLE_BASE=/oracle/product/orabase
export ORA_INVENTORY=/oracle/product/oraInventory


export PATH=/usr/sbin:/usr/local/bin:$PATH
export PATH=$ORACLE_HOME/bin:$PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export CLASSPATH=$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

# Fake Oracle Linux 7.
export CV_ASSUME_DISTID=OEL7.6

Jalankan env grid

bash

. grid.env

Buat Folder untuk Oracle Grid

bash

mkdir -p $ORACLE_HOME
mkdir -p $ORACLE_BASE
mkdir -p $ORA_INVENTORY

Upload File dan copy ke Oracle home

bash

unzip -qq LINUX.X64_193000_grid_home.zip -d $ORACLE_HOME

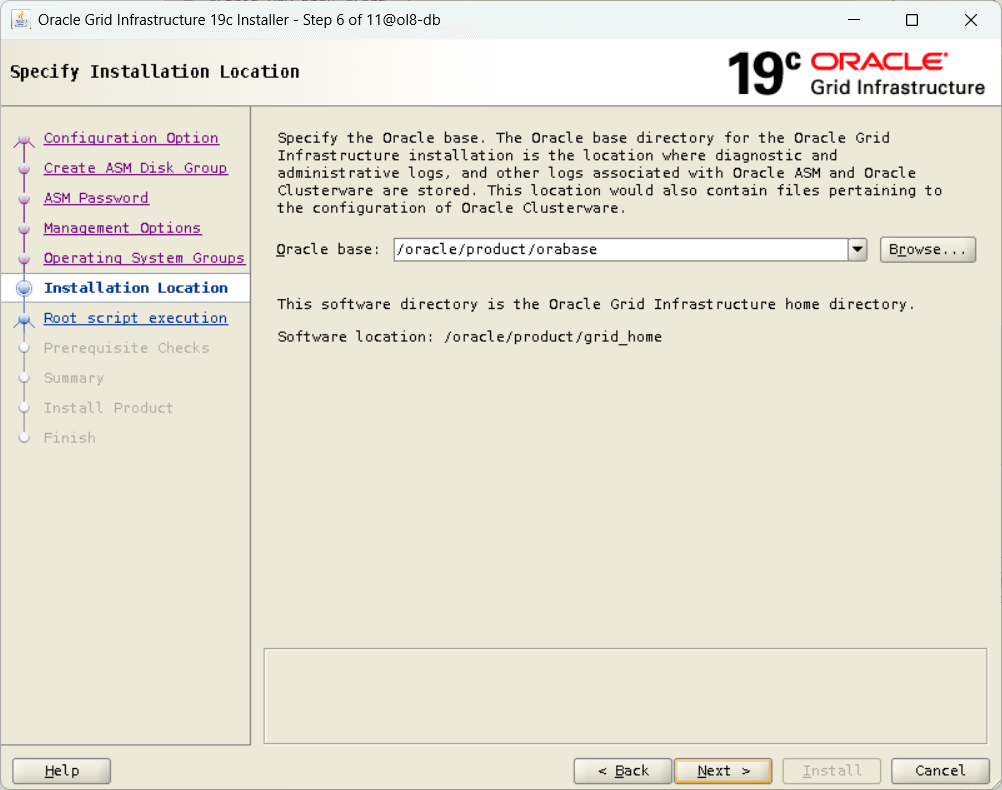

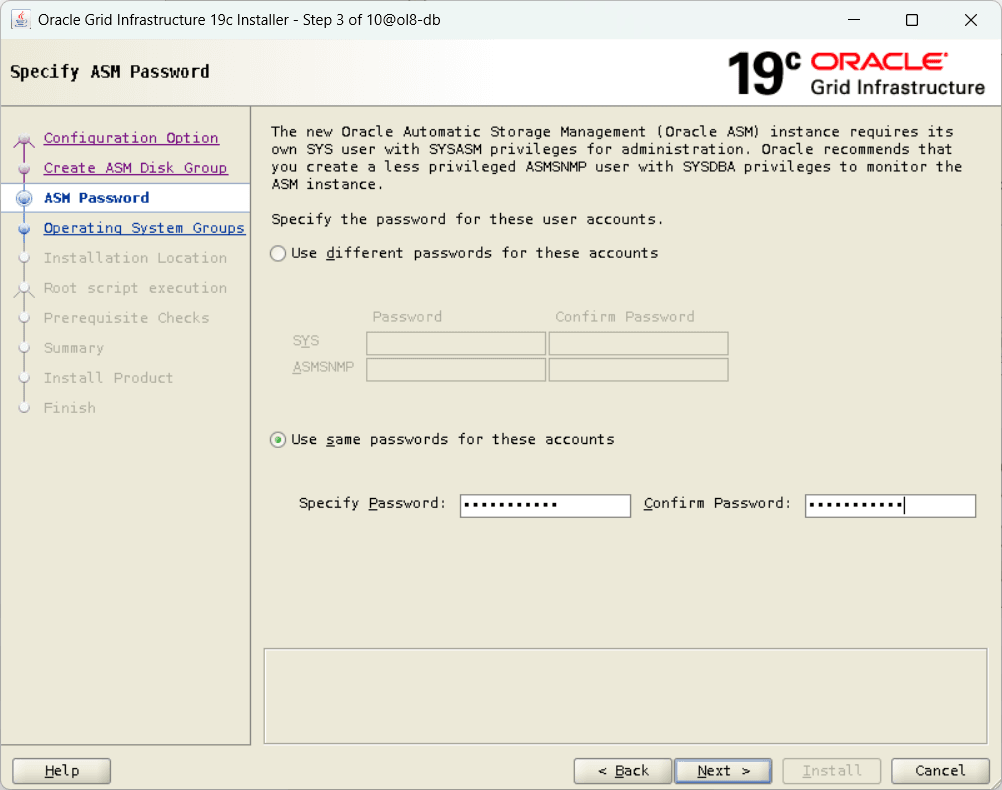

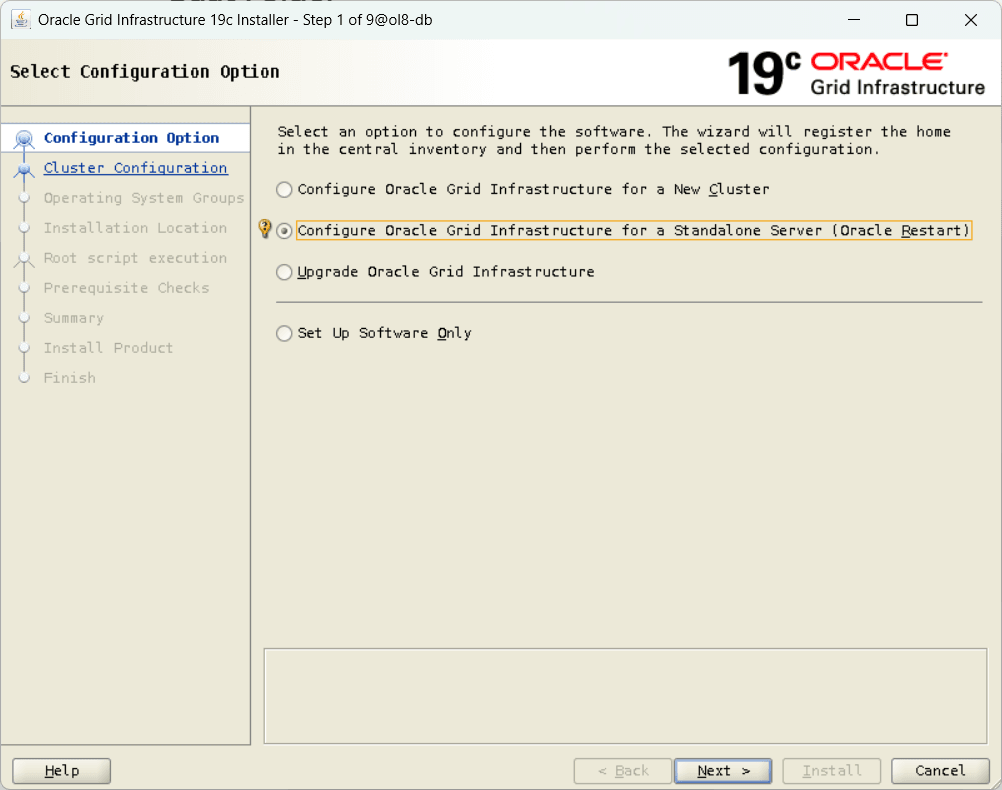

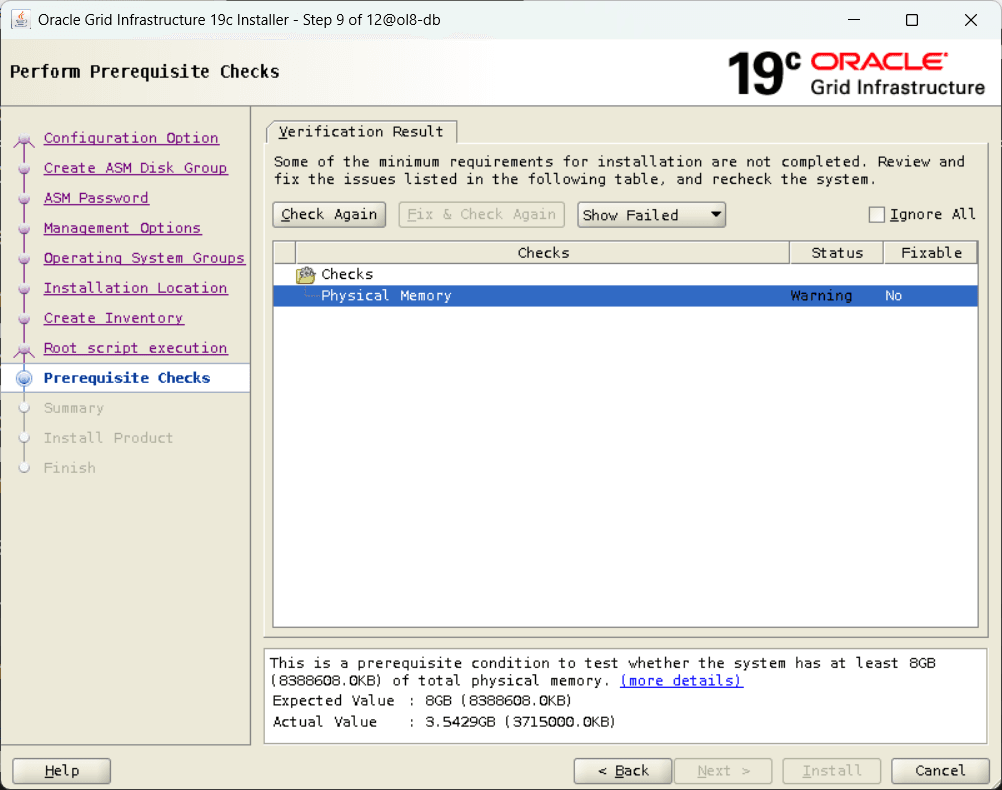

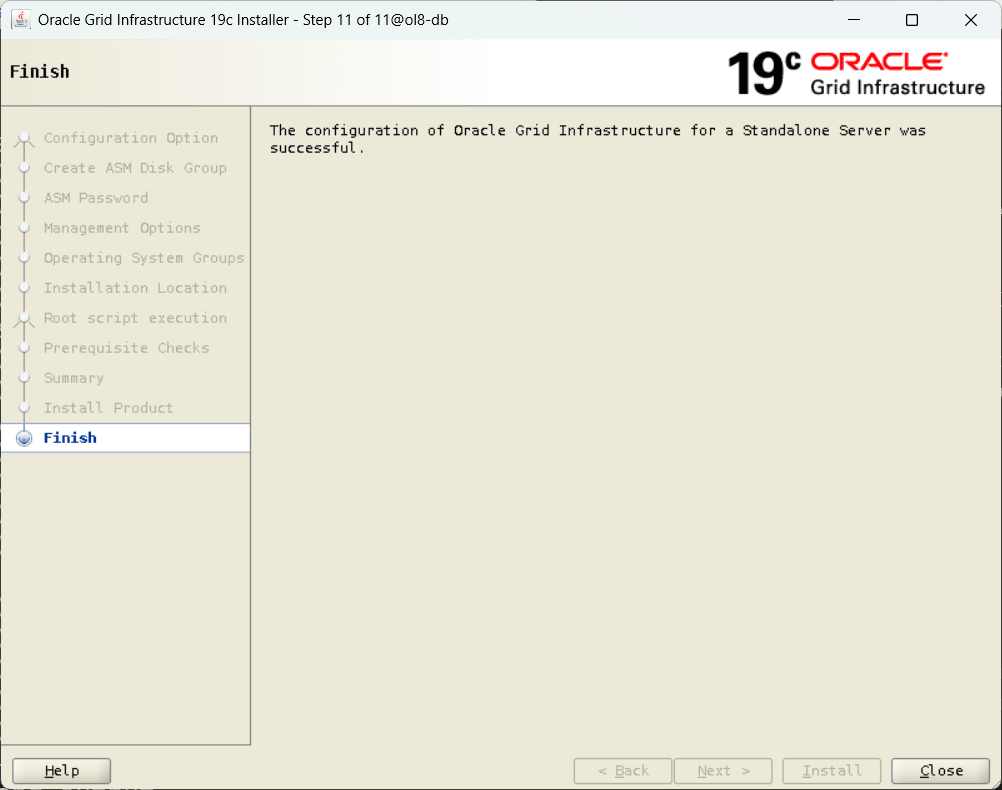

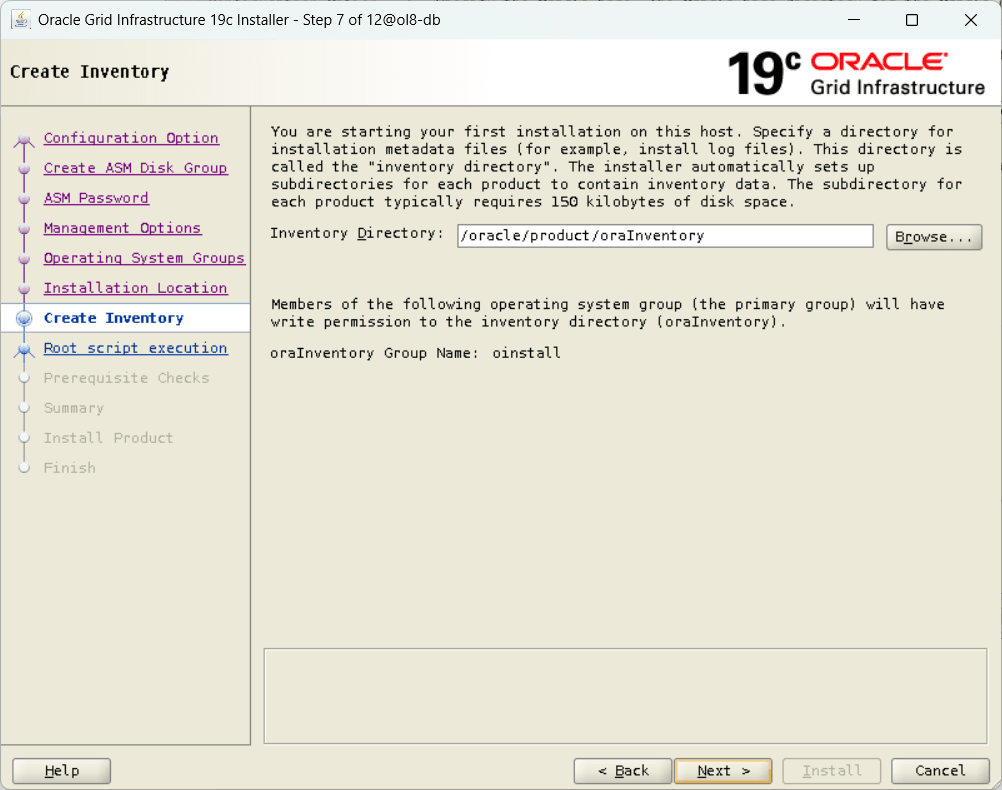

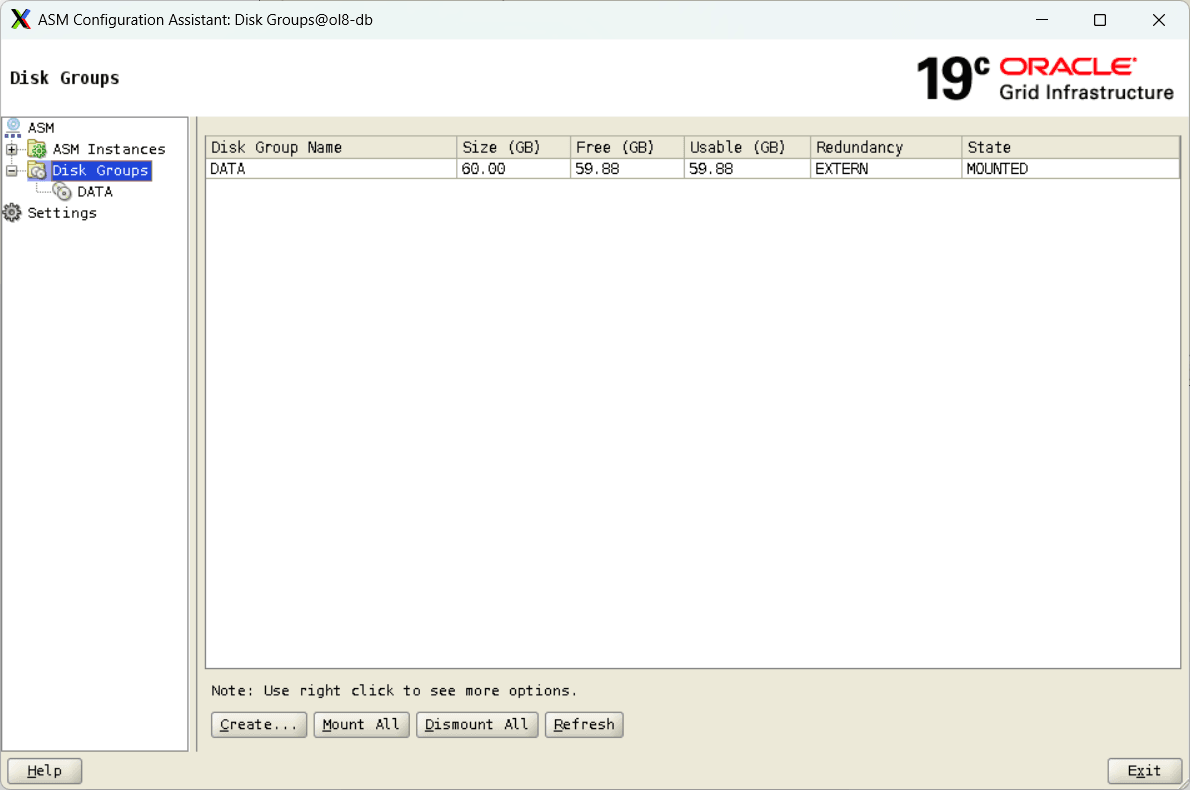

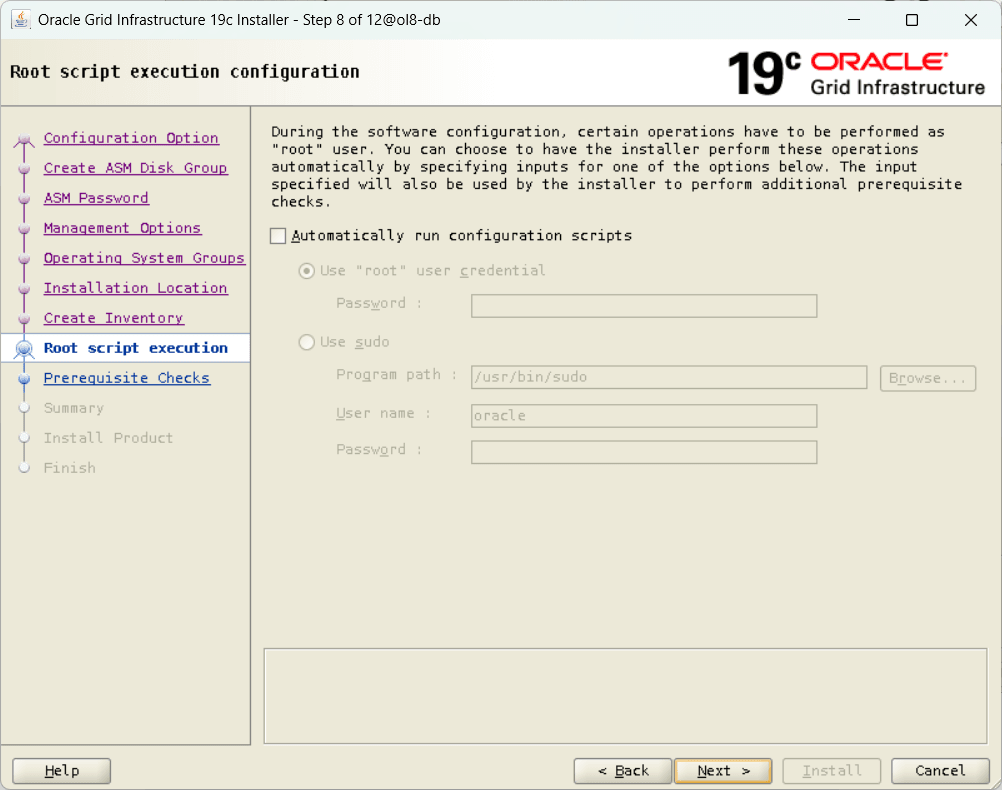

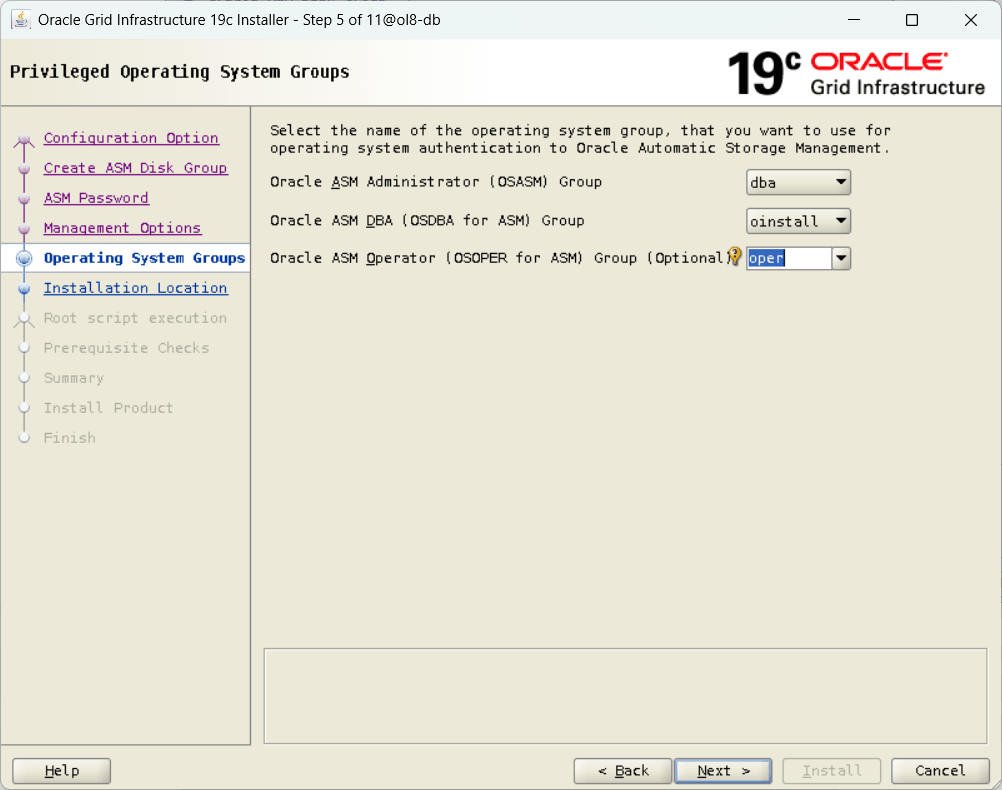

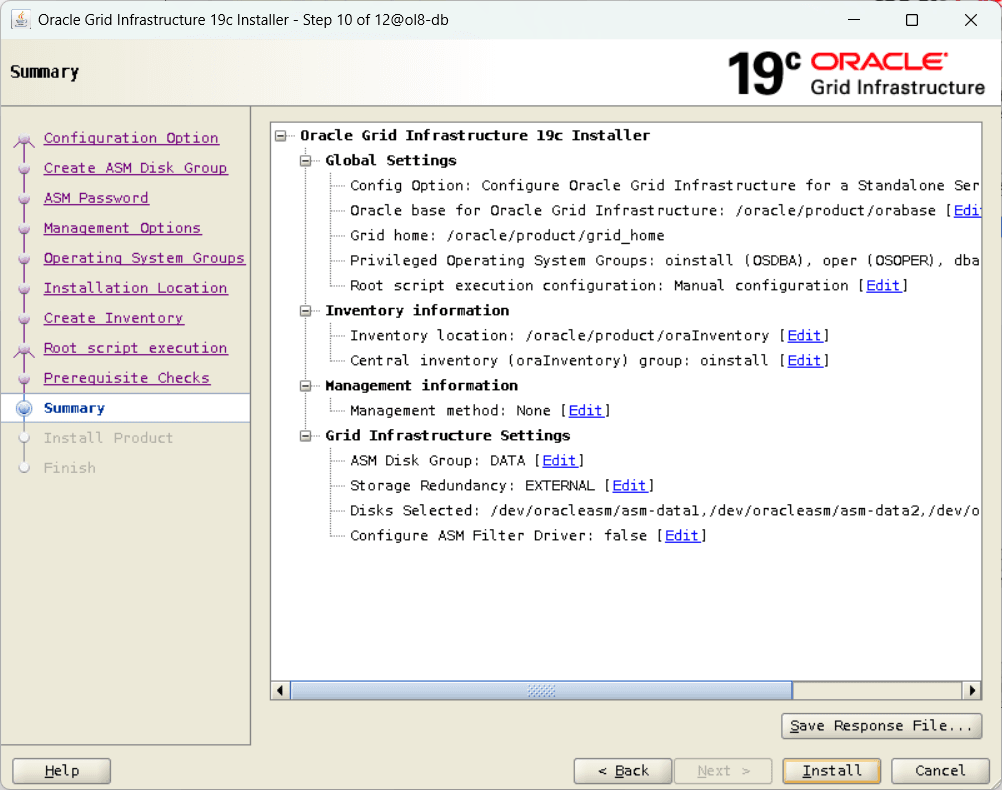

Install Grid

bash

cd $ORACLE_HOME
./gridSetup.sh

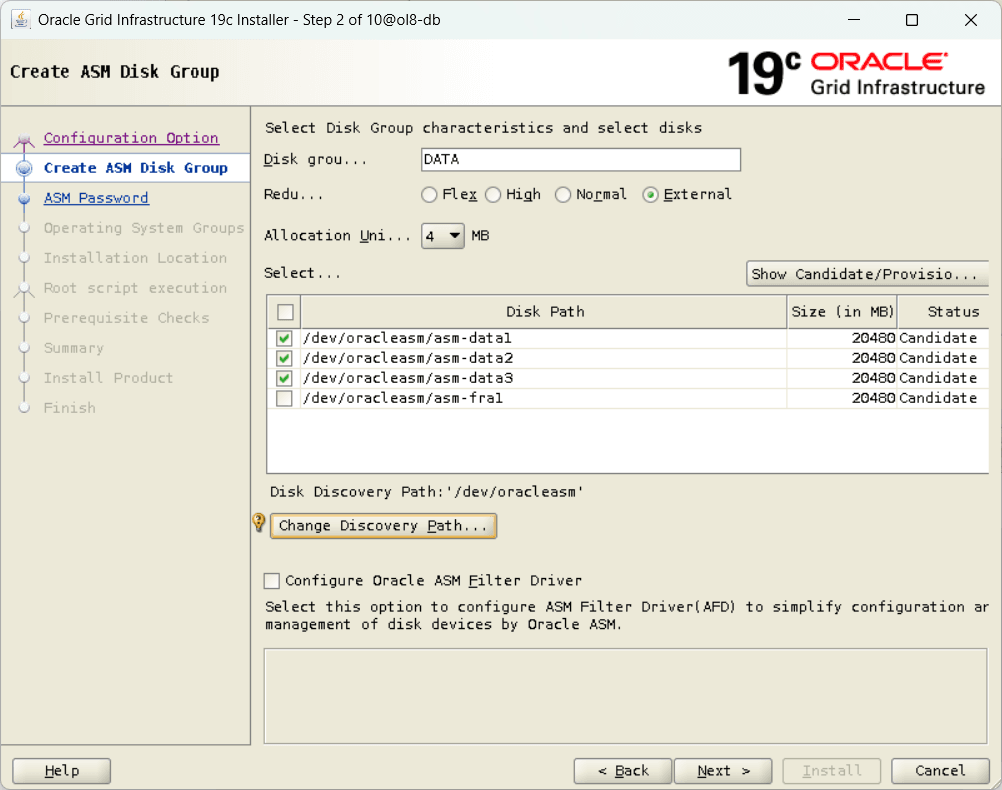

Ubah Normal menjadi external, ASM yang digunakan tidak menjadi redudansi

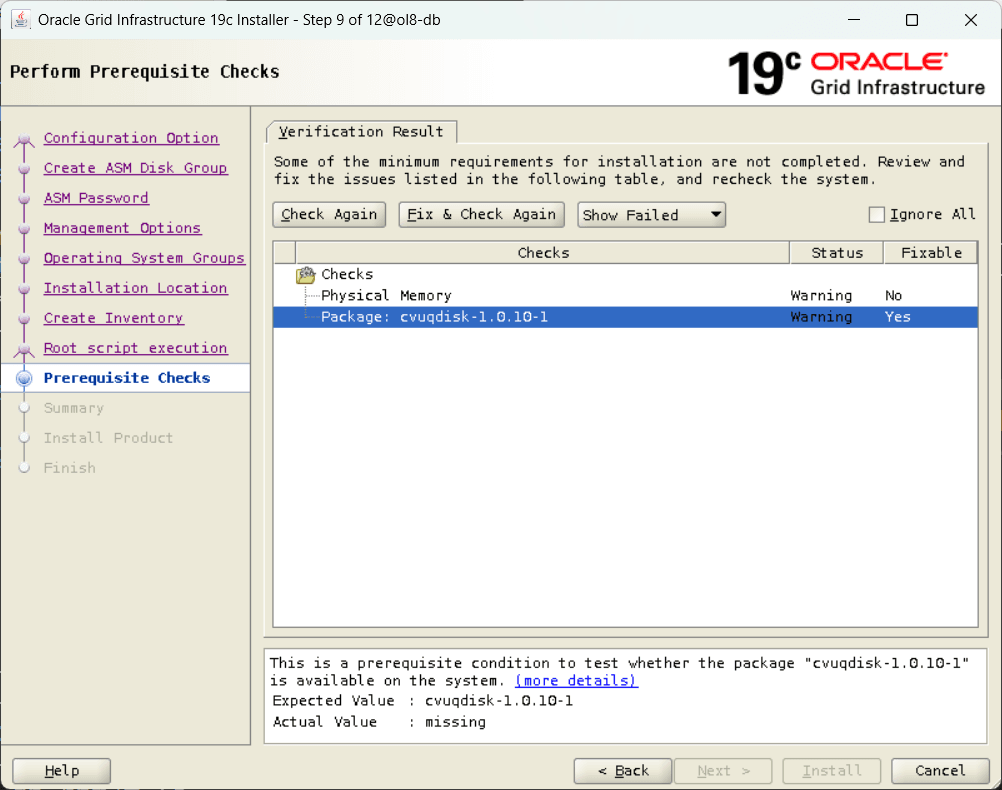

Install CV disk

Menggunakan user root

bash

cd /oracle/product/grid_home/cv/rpm/
yum install -y cvuqdisk-1.0.10-1.rpm

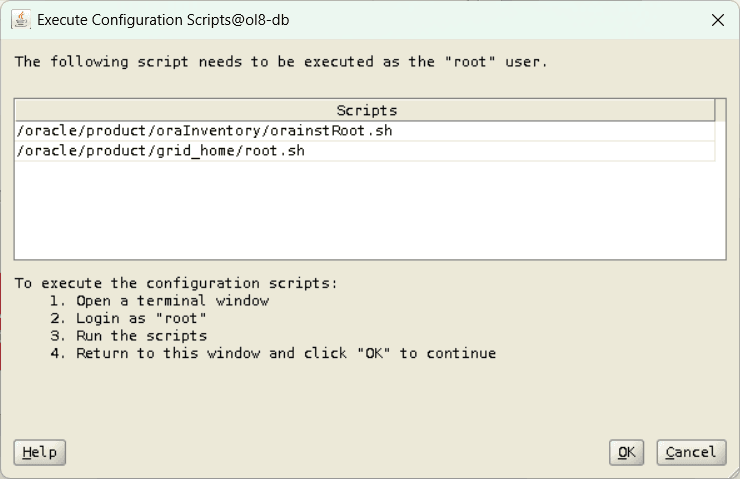

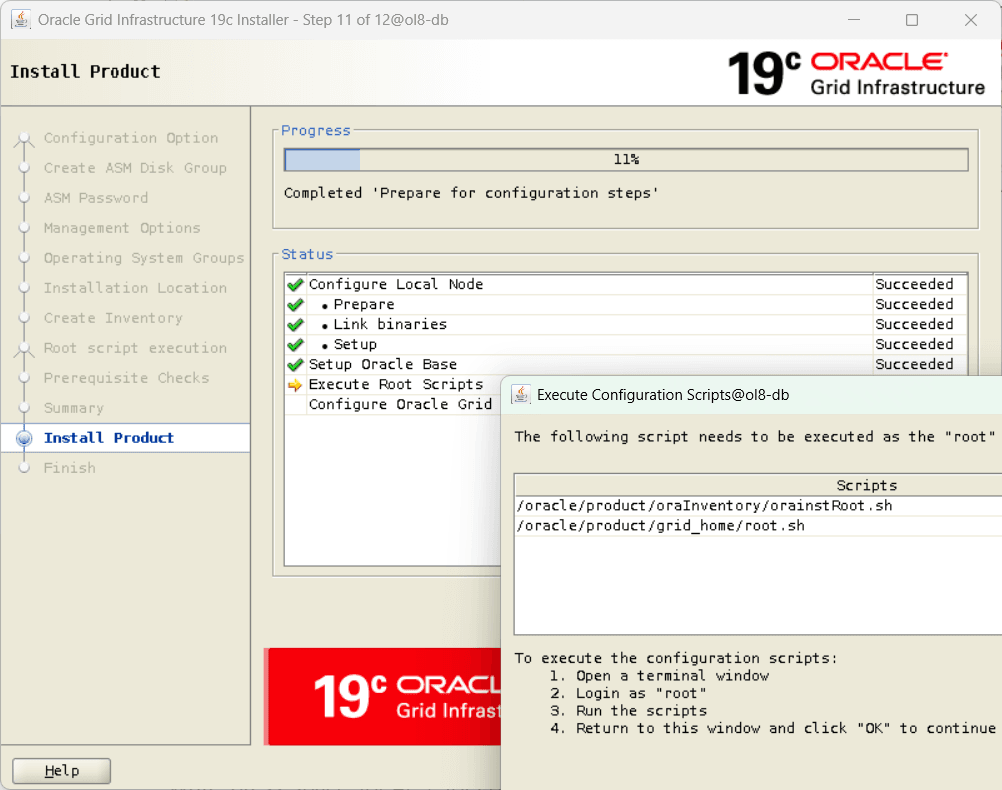

Jalankan di user root

bash

/oracle/product/oraInventory/orainstRoot.sh
/oracle/product/grid_home/root.sh

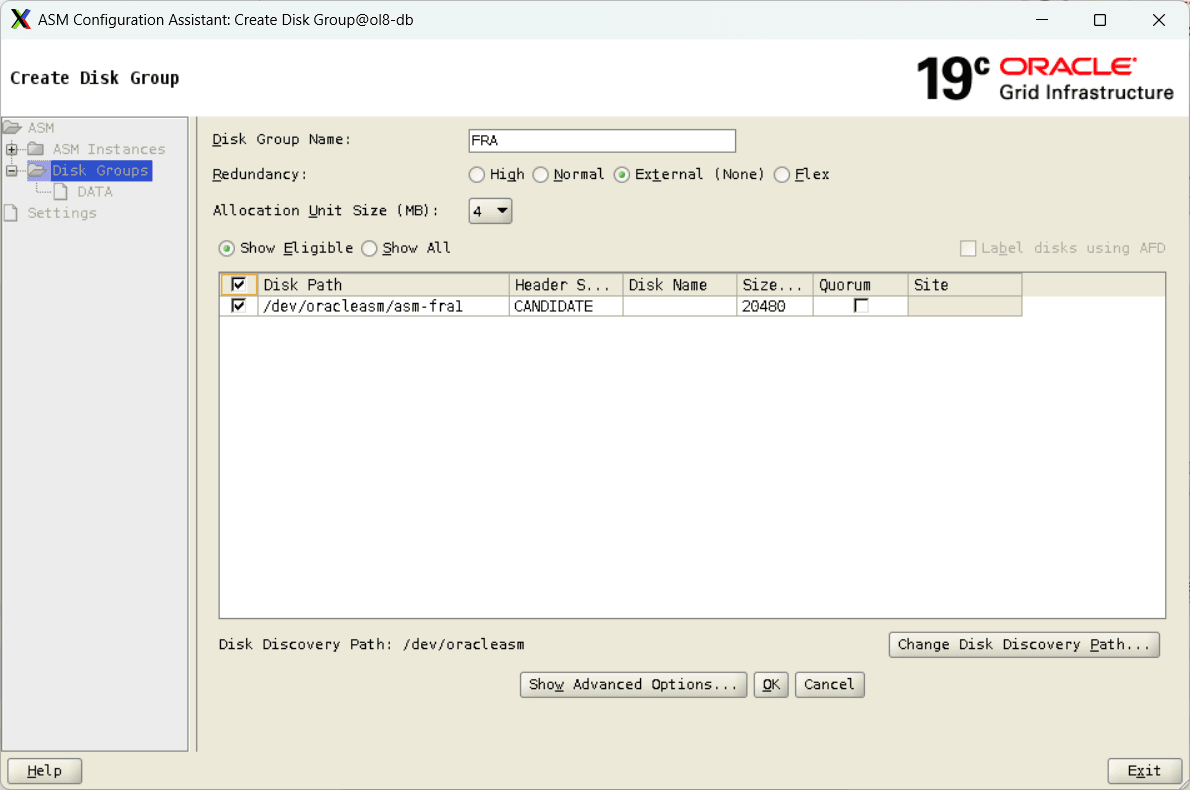

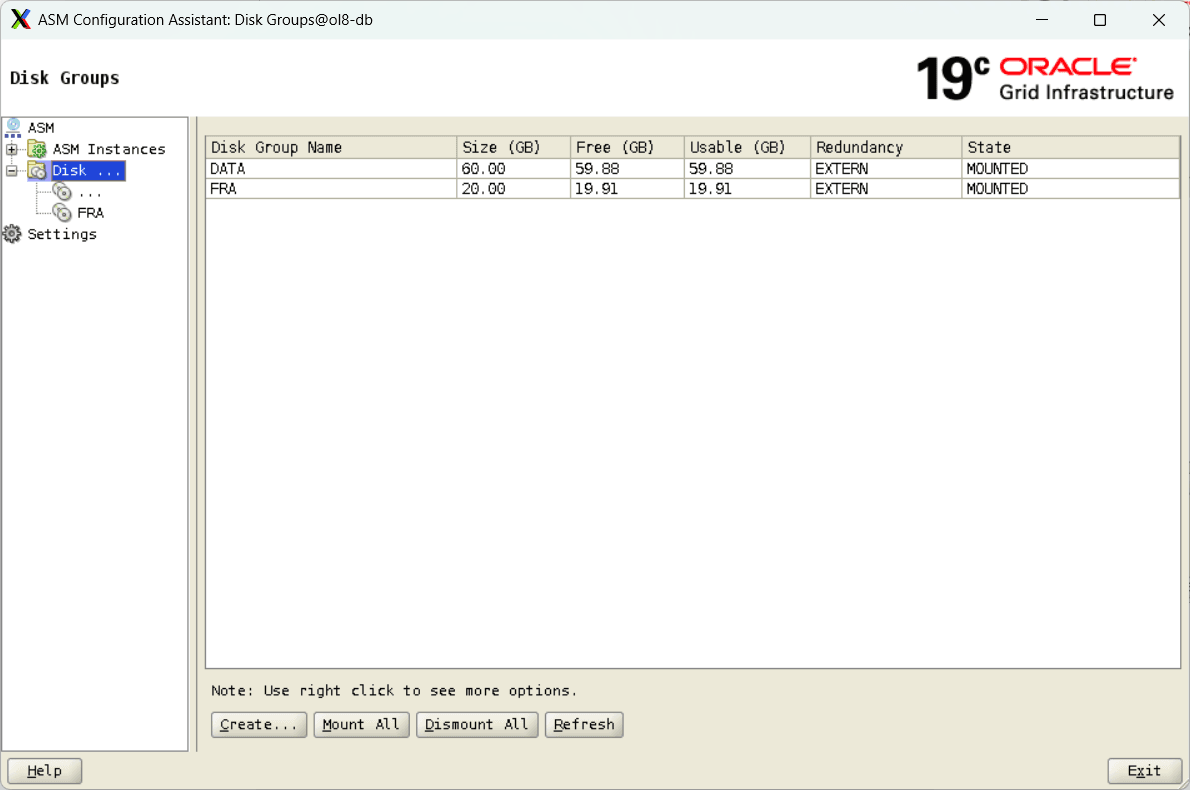

Tambah Diskgroup FRA

bash

asmca
